Cavity Ring Down Spectroscopy Technology
     Cavity ring down spectroscopy technology is a emerging method of spectrum detection. The technology is especially suitable for trace absorption of substance with its characteristics of long absorption optical path and unaffected by the change of light intensity. It is applied to the accurate measurement of high reflectivity of lens (accuracy up to 10-4 ~10-6) and trace gas detection because of simple device and easy quantitative measurement.

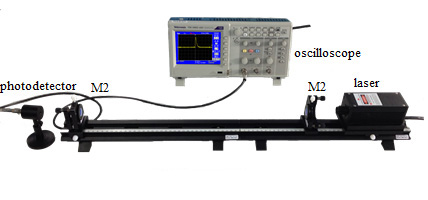

        As shown in the fig 1, optical resonant cavity composed of high reflectivity lens M1 and M2, when the 532nm pulsed laser along the optical axis is injected into the cavity, the laser pulse is reflected back and fourth between the two mirrors and from oscillation. Ringdown process of laser pulse in the cavity is detected by the photodetector behind M2 and ringdown time is recorded. Then the reflectivity of lens can be calculated out according to the ringdown time. The students can learn the method to measure the reflectivity of lens accurately by the experiment.
       Main points:
       a) The principle of cavity ring down spectroscopy technology
       b) The characteristics and application of cavity ring down spectroscopy technology
       c) Lens reflectivity of straight cavity measurement with cavity ring down spectroscopy technology
       d) The choice of core components of cavity ring down spectroscopy technology

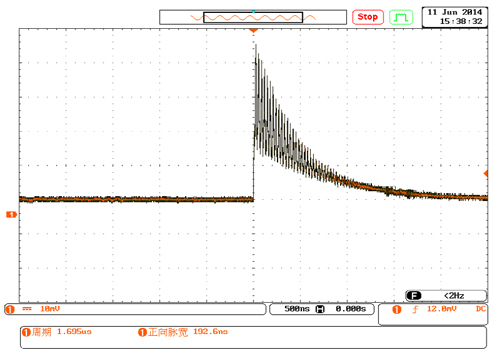

Experiment result
Related Courses
Principles of laser technology and application, Optical measurement technology and application, Modern laser engineering application technology, Application optics, Spectroscopy
Basic Configuration
Laser
Q-switched laser, Wavelength:532nm(Include current source)
Plane-concave lens
R=600mm, concavity: high-reflectivity film of 1064nm (different radius of curvature, different transmittance, selectable)
Photodetector
Detection wavelength coverage: 200-1100nm, Rise time:1ns
Oscilloscope
Bandwidth: 350MHz, Sampling frequency: 5GSa/s
Others
Slideway, adjusting bracket, Iaser goggle, baffle etc.
Expand the Experiment
Instrument Application
·Lens reflectivity of folded cavity measurement
·The content of the gas detection
·Observation and analysis of laser modes based on plane scanning interferometer
·Teaching experiment and research applications
