Observation and Measurement of Laser Modes with F-P Scanning Interferometer
Laser mode is a very important index to measure the laser characteristic, is an effective way to understand laser and comprehend the theory of laser. Besides, in different fields, the laser requirements are also different, such as laser fine processing requires interferometric measurements need single longitudinal mode laser.
In the experiment, laser longitudinal mode is analyzed with a F-P scanning interferometer, such as longitudinal mode observation (Single longitudinal mode, Multi-longitudinal mode, mode competition), line width of longitudinal mode measurement, frequency interval of longitudinal mode measurement etc. The students can understand the structure and principle of F-P scanning interferometer, grasp how to use it and comprehend the abstract concepts above by the experiment.
Main points:
a) Longitudinal mode of standing wave cavity generation mechanism
b) Analysis of longitudinal mode (Single longitudinal mode, Multi-longitudinal mode, mode competition)
c) Structure and operational principle of scanning interferometer
d) Line width and frequency space of longitudinal mode measurement and calculation

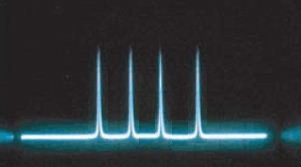

Single longitudinal mode

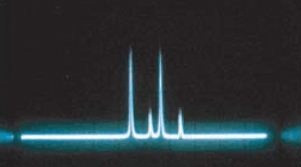

Multi-longitudinal mode
Related Courses
Principles of lasers, Laser optics, Laser technology, Laser devices

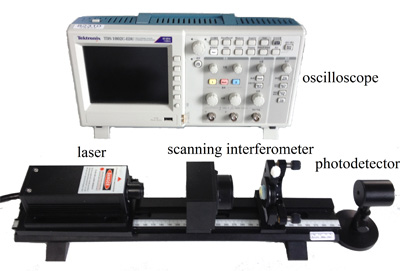

Basic Configuration
Laser
Wavelength:530nm(Include current source)
Plane scanning interferometer
Free spectral range: 3GHz
Photodetector
Response rate< 5ms
Sawtooth-wave generator
Instrument power: 220VAC
Oscilloscope
Double-channel Simulative/Numerical
Others
Slideway, adjusting bracket, Iaser goggle, baffle
Expand the Experiment
Instrument Application
·Line width of laser spectrum measurement
·Fine-structure constant of interferometer measurement
·Free spectral range of interferometer measurement
·Resolution of interferometer measurement
·Laser spectrum measurement with high resolution
·Laser mode detection and control
·Longitudinal mode laser production and detection
·Analysis of laser light noise generation mechanism
