Laser induced breakdown spectroscopy (LIBS)
Laser induced breakdown spectroscopy technology with its advantage of rapid and uncomplicated operation is widely used in many fields about element identification. The students can understand the procedure of laser induced plasma generation by observing the mechanism of action between laser and substance, searching laser induced breakdown spectroscopy and obtaining corresponding elements wavelength of sample under test through the calibration pf spectral graph.
       Main points:
       a) Conception of laser induced plasma
       b) Generation procedure of laser induced plasma
       c) Plasma spectrum
       d) Spectrum wavelength of different element

Laser induced plasma

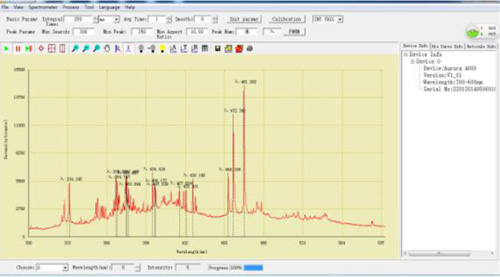

Laser induced plasma spectrum
Related Courses
Plasma physics, Plasma spectroscopy, Laser application, Laser devices, Application optics

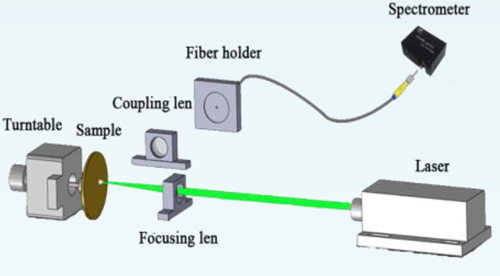

Basic Configuration
Specifications
Pulsed laser
Wavelength:1064nm(Include current source)
Focusing lens
K9 Glass: f=75mm
Spectrometer
Fiber optics spectrometer
Wavelength coverage:300-600nm
Others
Slideway, baffle, laser goggle, fiber, sample stage etc.
Expand the Experiment
Instrument Application
·Classification of laser plasma
·Laser welding
·Shock waves of laser plasma
·Laser ablation
·Teaching experiment and research applications
·Material identification
·Analysis of alloy steel
·Detection of heavy metals in the soil
