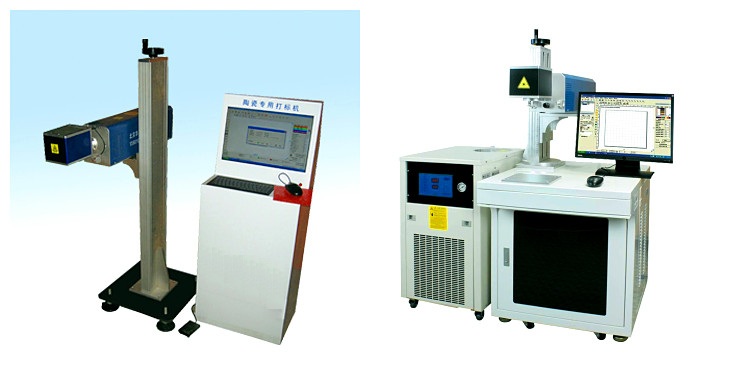

CO2 Laser Marker

Technical specifications:

OLRC-10

OLRC-30

OLRC-60

OLRC-100

Laser output power

10W

30W

60W

100W

Laser wavelength

10.64µm

Working size

70X70 -600X600mm

3D dynamical optional

Max.processing size:1500mm X 1200mm

Marking line speed

7m/s

Min.line width

0.1mm

Min.Characters size

0.4mm

Repeatability accuracy

±0.01mm

Power supply

AC220V / 50Hz / Max.10Amp / Single phase

Cooling system

Air cooled

Air cooled

Water cooled

Water cooled
