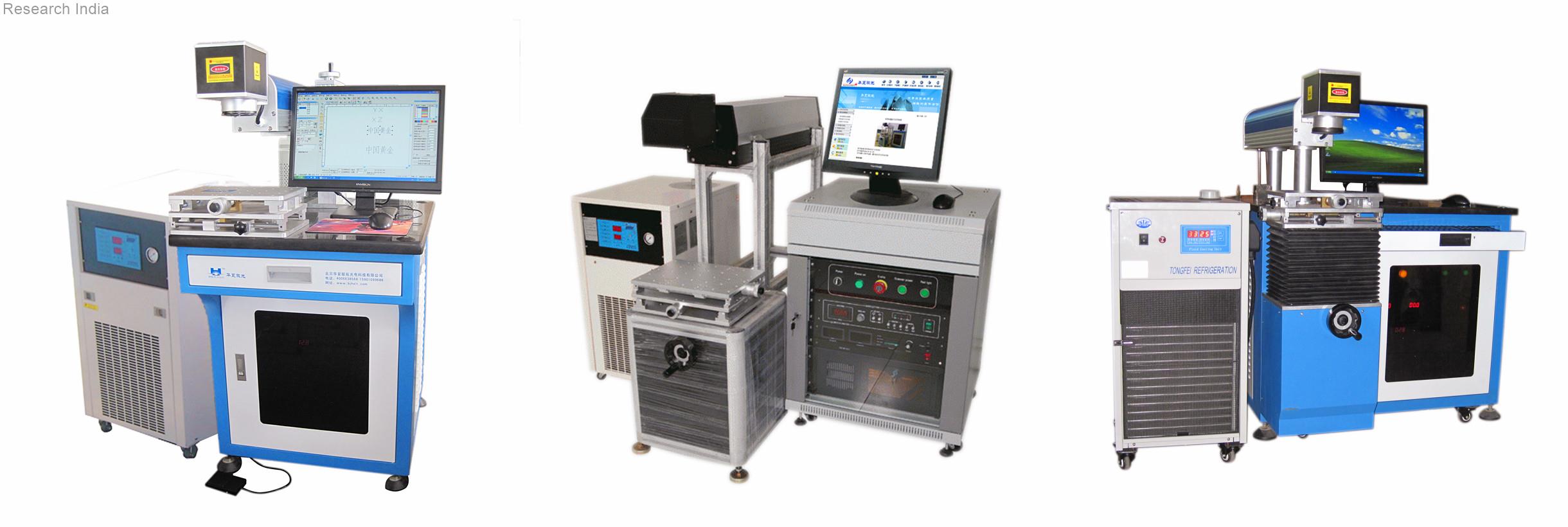

Diode Side-pumped Laser Marker

Features:
1,High electro-optic conversion efficiency
2,Low power dissipation and stable laser output
3,Semiconductor pump laser with long service life
4,Laser output with small spot and thin lines, suitable for precise pattern marking
Applications:
Laser marking machine have been widely applied to make most metal materials and
some nonmetal materials, especially to process high elaborate and accurate product marking ,
such as electronic components, components ,communication equipment ,glasses and watch ,
auto parts, plastic buttons, tools, tableware, medical equipment .precision metal, gift accessories,
label, PVP tube etc.
Technical specifications:
Model
ORCB-50
ORCB-75
Max laser power
50W
75W
Laserwave length
1064nm
1064nm
Laser Repetition frequency
=50KHZ
=50KHZ
Marking area
100×100mm/200×200mm/300×300mm
Marking depth
=0.8mm
=1.0mm
Linear speed
=7000mm/s
=7000mm/s
Min line width
0.01mm
0.015mm
Min letter
0.2mm
0.2mm
Repeatability
±0.002mm
±0.002mm
Power supply
220v±10%/50Hz
220v±10%/50Hz
Host dimension
1000mm*800mm*1100mm
1000mm*800mm*1100mm
