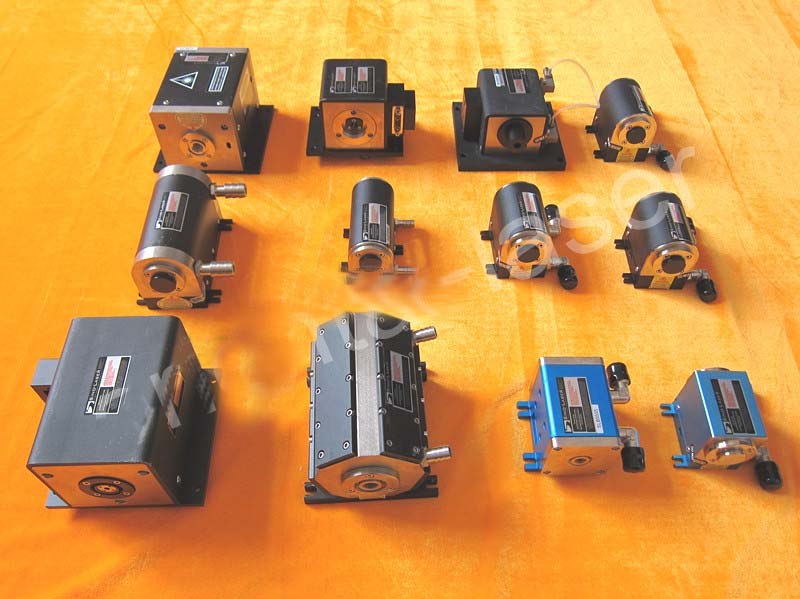

DPSS Laser Module (QCW)
Model No.
Nd:YAG(mm)
Pumping Power(808nm)
Pulse Energy (200us)
Current(A)
Voltage(V)
OGQ9
F2-4
900W
>30-40mJ
110
18
OGQ12
F2-4
1200W
>40-50mJ
110
24
OGQ15
F2-4
1500W
>60-70mJ
110
30
OGQ30
F3-5
3KW
>120-140mJ
110
60
OGQ50
F3-5
5KW
>200-250mJ
110
100
OGQ50B
F3-5
5KW
>200-250mJ
200
50
OGQ100B
F4-8
10KW
>400-500mJ
200
100
OGQ200B
F4-8
20KW
>800-1000mJ
200
200
Customized Stack / Planar Array Side/End-Pumping QCW Module
